Capping Rubber

CAPPING PRODUCTS

Capping rubber extrusions have a high EPDM rubber content, making them highly resistant to adverse weather conditions, ozone and general ageing. The rubber also offers effective resistance to fats, oils and hydrocarbons. Protecting exposed edges from wear and tear, the 70° shore rubber edge trims are of an extremely high quality, making them the perfect choice for outdoor applications.

A popular choice in the mining and quarrying industries, capping rubber is used on vibrating screens to cover stringer bars, which protect the screen cloth from wear and tear. As protective buffers, they reduce and prevent damage to the cloth and deck frames – our profiles are particularly suited to this application, thanks to their durable physical properties.

We offer a wide range of generic profiles, proprietary designs and bespoke capping rubbers to cater for every requirement.

When replacing a screen mesh, hard-wearing capping rubber is the key because if the rubber becomes worn, it shortens the lifespan of the screen mesh.

Please contact us to discuss your capping rubber requirements. If you require a bespoke size, we can manufacture to a variety of configurations.

AR02

AR02
Product Code # Description / Size Details
Depth x Width
[mm]
Compound Code
[EPDM]
Coil Length
[m]
Weight / mtr
per meter
[kgs]
D-AR2 50 x 35 EPX-S70 10 1.420

AR03

AR03
Product Code #Description / Size Details
Depth x Width
[mm]
Compound Code
[EPDM]
Coil Length
[m]
Weight / mtr
per meter
[kgs]
D-AR380 x 40EPX-S70102.220

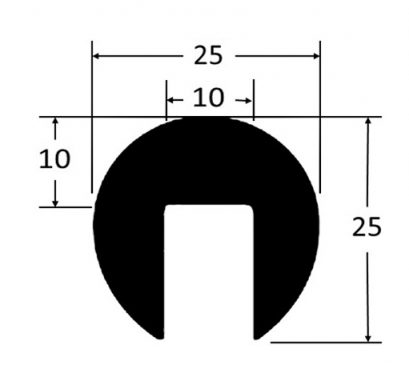

SM01

Product Code #Description / Size Details
Depth x Width
[mm]
Compound Code
[EPDM]
Coil Length
[m]
Weight / mtr
per meter
[kgs]
D-SM0125 x 25EPX-S70150.575

SM02

SM02
Product Code #Description / Size Details
Depth x Width
[mm]
Compound Code
[EPDM]
Coil Length
[m]
Weight / mtr
per meter
[kgs]
D-SM0230 x 30EPX-S70150.785

TECHNICAL DATA – COMPOUND TEST RESULTS

No:DescriptionASTM Test MethodUnitResult Specifications
1MaterialEPDM (Ethylene Propylne Diamonomer)
2Specific GravitySG1.2 – 1.3
3HardnessSH’A’70±5º
4Tensile Strength [min]D 412Mpa11
5Elongation at Break [min]D 412%210
6Ageing ResistanceD 573changePlease see below details for ageing
 [70 hours at 100ºC]
6.1Change in Hardness [max]D 573IRHD %+10º
6.2Change in Hardness [max]D 573%-15
6.3Change in ElongationD 573%-40
7Compression Set at
22 hours at 70ºC [max]
D 395%±30
8Tear Strength [min]D 624kg/cm212
9Ozone ResistanceD 1149No Cracks
10Water ResistanceExcellent
11Weather ResistanceExcellent
12Oil ResistancePoor
13ColourBlack
14Length Tolerance%2
15Profile ToleranceISO 3302ClassE2
