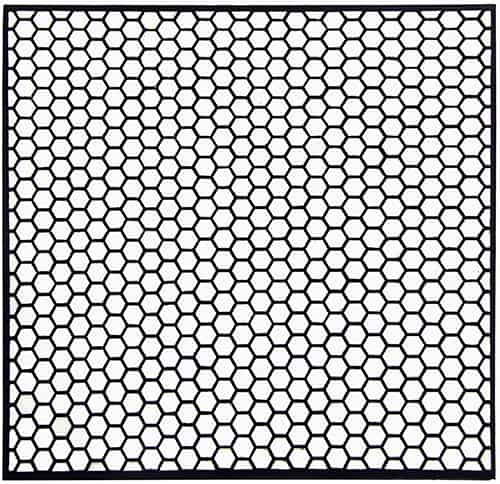

Ceramic Wear Pads

Applications

  • UKRB-WEAR ceramic wear pads have been designed primarily for use as a ceramic lining for the wear and corrosion protection of steel sufraces
  • It is mainly used for high speed wet abrasion applications such as slurry handling in the mineral processing industry but can be used for any fine particle abrasion applications
Dimensions
CodeThickness (mm)Width (mm)Length (mm)
UKRB Pad A8500500
UKRB Pad B14500500
UKRB Pad C20500500
UKRB Pad D30500500

Also available in mild steel backing with above dimensions

Ceramic Specifications
Aluminium Oxide Al2O392% (min)
Density (g/cc)3.65 (min)
Hardness (R45N)77 (min)
Flexural Strength (Mpa)240 (min)
Abrasion by Rubbing (g)0.1 (max)
Rubber Specifications
Hardness (Shore ‘A’)65+/-5
Density (g/cc)1.12 to 1.17
Tensile Strength (Mpa)20.0 (min)
Elongation (min)400% (min)
Abrasion (mm3)120 (max)
