Chevron G25/550

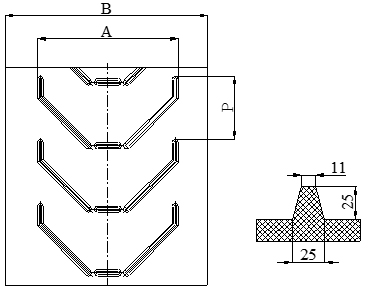

TypeB [mm]A [mm]P [mm]
Chevron G25/550600 – 800550247
Type of insertions EP80 EP100 EP125 EP160
Insertions number 2-4
Tensile strength, Kgf/cm, min 160 – 240 200 – 400 250 – 500 315 – 630
Width [mm] 600 – 800
Thickness [mm] 4 – 12 6 – 12 6 – 12 6 – 12

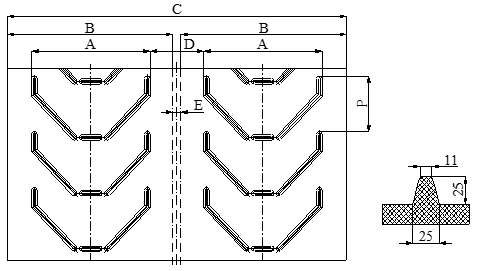

TypeC [mm]B [mm]A [mm]P [mm]D [mm]E [mm]
Chevron G25/5501400-1600600550247250200
Chevron G25/5501400-1600650550247250150
Chevron G25/5501400-1600700550247250100
Chevron G25/5501400-160075055024725050
Chevron G25/5501400-16008005502472500



Type of insertionsEP80EP100EP125EP160
Insertions number2-4
Tensile strength,
Kgf/cm, min
160 – 240200 – 400250 – 500315 – 630
Width [mm]1400-1600
Thickness [mm]4 – 126 – 126 – 126 – 12
Rubber Mixture properties for coversGeneral UseResistance to TemperatureResistance to Oil
wxyzT2T3MORGROS
Tensile strength,
daN/cm2,
min
180250200150150120150140150
Elongation at
break, min
40045040070450350350350350
Abrasion resistance
(volume of wear),
mm3, max
90120150250150200200200150
Resistant to oilNoNoNoNoNoNoMediumGoodVery Good
Working temperature,
°C [max]
707070701201507080100
