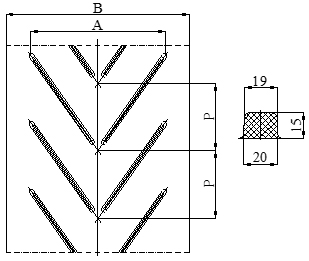

Chevron R15/287/436/585

TypeB [mm]A [mm]P [mm]
Chevron R15/287400287145
Chevron R15/287450287145
Chevron R15/287500287145
Chevron R15/436500436218
Chevron R15/436550436218
Chevron R15/436600436218
Chevron R15/436650436218
Chevron R15/436700436218
Chevron R15/436750436218
Chevron R15/436800436218
Chevron R15/585650585295
Chevron R15/585700585295
Chevron R15/585750585295
Chevron R15/585800585295
Type of insertions EP 80 EP 100 EP 125 EP 160
Insertions number 2 – 4
Tensile strength, Kgf/cm, min 160 – 240 200 – 400 250 – 500 315 – 630
Width [mm] 400 – 800
Thickness [mm] 4 – 12 6 – 12 6 – 12 6 – 12

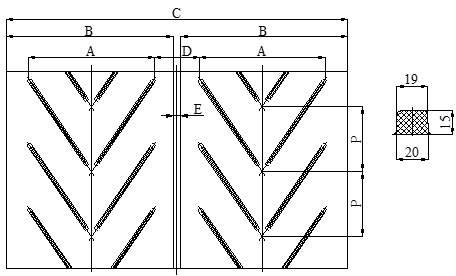

Type C [mm]B [mm]A [mm]P [mm]D [mm]E [mm]
Chevron R15/2871000 – 1600400287145413300
Chevron R15/2871000 – 1600450287145413250
Chevron R15/2871000 – 1600500287145413200
Chevron R15/4361200 – 1600500436218424;364;264360;300;200
Chevron R15/4361200 – 1600550436218424;364;264310;250;150
Chevron R15/4361200 – 1600600436218424;364;264260;200;100
Chevron R15/4361200 – 1600650436218424;364;264210;150;50
Chevron R15/4361200 – 1600700436218424;364;264160;100;0
Chevron R15/4361200 – 1600750436218424;364110;50
Chevron R15/4361200 – 1600800436218424;36460;0
Chevron R15/5851400 – 1600650585295215150
Chevron R15/5851400 – 1600700585295215100
Chevron R15/5851400 – 160075058529521550
Chevron R15/5851400 – 16008005852952150
Type of insertionsEP 80EP 100EP 125EP 160
Insertions number2 – 4
Tensile strength,
Kgf/cm, min
160 – 240200 – 400250 – 500315 – 630
Width [mm]1000 – 1600
Thickness [mm]4 – 126 – 126 – 126 – 12
Rubber mixture, properties for coversGeneral UseResistance to TemperatureResistance to Oil
wxyzT2T3MORGROS
Tensile strength,
daN/cm2,
min
180250200150150120150140150
Elongation at
break, min
40045040070450350350350350
Abrasion resistance
(volume of wear),
mm3, max
90120150250150200200200150
Resistant to oilNoNoNoNoNoNoMediumGoodVery Good
Working temperature,
°C [max]
707070701301507080100
