Chevron R15/385

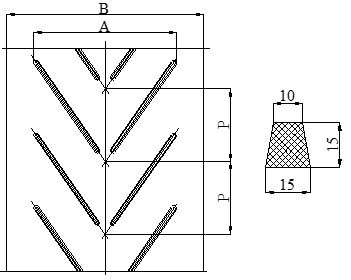

TypeB [mm]A [mm]P [mm]
Chevron R15/385400385254
Chevron R15/385450385254
Chevron R15/385500385254
Chevron R15/385550385254
Chevron R15/385600385254
Chevron R15/385650385254
Chevron R15/385700385254
Chevron R15/385750385254
Chevron R15/385800385254
Type of insertionsEP80EP100EP125EP160
Insertions number 2-4
Tensile strength,
Kgf/cm, min
160 – 240200 – 400250 – 500315 – 630
Width [mm]400 – 800
Thickness [mm]4 – 12 6 – 126 – 126 – 12

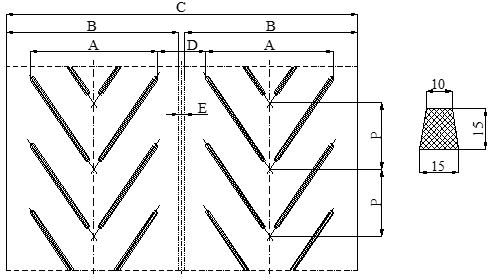

TypeC [mm]B [mm]A [mm]P [mm]D [mm]E [mm]
Chevron R15/3851200 – 1600400385254415400
Chevron R15/3851200 – 1600450385254415350
Chevron R15/3851200 – 1600500385254415300
Chevron R15/3851200 – 1600550385254415250
Chevron R15/3851200 – 1600600385254415200
Chevron R15/3851200 – 1600650385254415150
Chevron R15/3851200 – 1600700385254415100
Chevron R15/3851200 – 160075038525441550
Chevron R15/3851200 – 16008003852544150



Type of insertionsEP80EP100EP125EP160
Insertions number 2-4
Tensile strength,
Kgf/cm, min
160 – 240200 – 400250 – 500315 – 630
Width [mm]1200 – 1600
Thickness [mm]4 – 12 6 – 126 – 126 – 12
Rubber Mixture properties for coversGeneral UseResistance to TemperatureResistance to Oil
wxyzT2T3MORGROS
Tensile strength,
daN/cm2,
min
180250200150150120150140150
Elongation at
break, min
40045040070450350350350350
Abrasion resistance
(volume of wear),
mm3, max
90120150250150200200200150
Resistant to oilNoNoNoNoNoNoMediumGoodVery Good
Working temperature,
°C [max]
707070701201507080100
