Chevron R25/450/750

TypeB [mm]A [mm]P [mm]
Chevron R25/450500450312,5
Chevron R25/450550450312,5
Chevron R25/450600450312,5
Chevron R25/450650450312,5
Chevron R25/450700450312,5
Chevron R25/450750450312,5
Chevron R25/450800450312,5
Chevron R25/750800750451
Chevron R25/750850750451
Chevron R25/750900750451
Chevron R25/750950750451
Chevron R25/7501000750451
Chevron R25/7501050750451
Chevron R25/7501100750451
Chevron R25/7501150750451
Chevron R25/7501200750451
Chevron R25/7501250750451
Chevron R25/7501300750451
Chevron R25/7501350750451
Chevron R25/7501400750451
Chevron R25/7501450750451
Chevron R25/7501500750451
Chevron R25/7501550750451
Chevron R25/7501600750451
Type of insertionsEP80EP100EP125EP160
Insertions number2-4
Tensile strength,
Kgf/cm, min
160 – 240200 – 400250 – 500315 – 630
Width [mm]500-1600
Thickness [mm]4 – 126 – 126 – 126 – 12

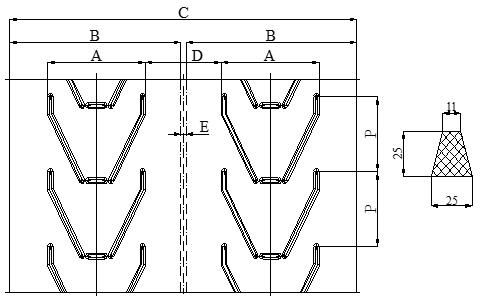

TypeC [mm]B [mm]A [mm]P [mm]D [mm]E [mm]
Chevron R25/4501250 – 1600500450312,5350300
Chevron R25/4501250 – 1600550450312,5350250
Chevron R25/4501250 – 1600600450312,5350200
Chevron R25/4501250 – 1600650450312,5350150
Chevron R25/4501250 – 1600700450312,5350100
Chevron R25/4501250 – 1600750450312,535050
Chevron R25/4501250 – 1600800450312,53500
Type of insertionsEP80EP100EP125EP160
Insertions number2-4
Tensile strength,
Kgf/cm, min
160 – 240200 – 400250 – 500315 – 630
Width [mm]1250-1600
Thickness [mm]4 – 126 – 126 – 126 – 12
Rubber Mixture properties for coversGeneral UseResistance to TemperatureResistance to Oil
wxyzT2T3MORGROS
Tensile strength,
daN/cm2,
min
180250200150150120150140150
Elongation at
break, min
40045040070450350350350350
Abrasion resistance
(volume of wear),
mm3, max
90120150250150200200200150
Resistant to oilNoNoNoNoNoNoMediumGoodVery Good
Working temperature,
°C [max]
707070701201507080100
