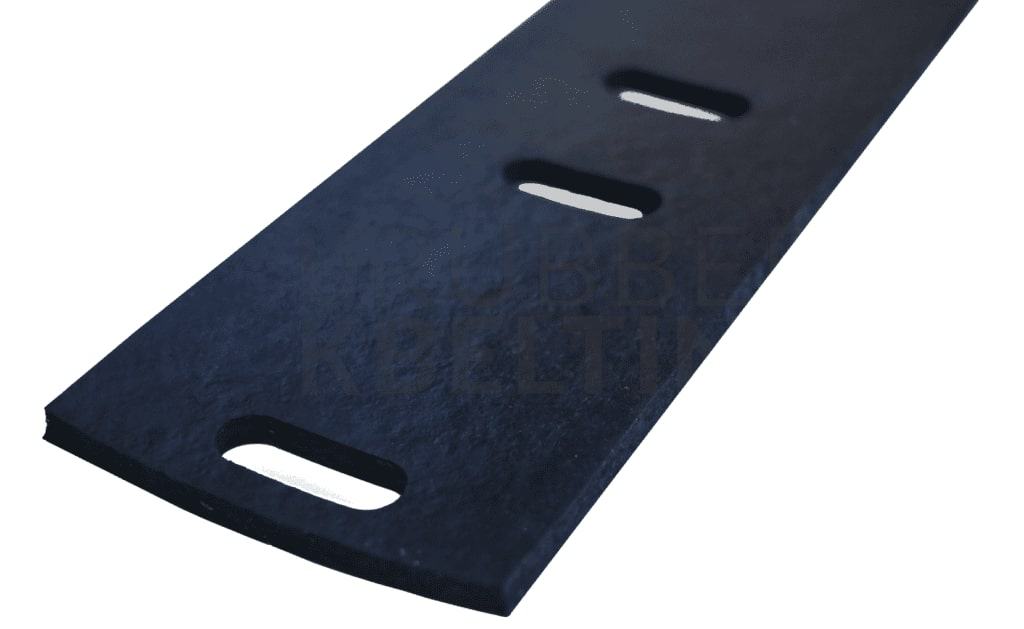

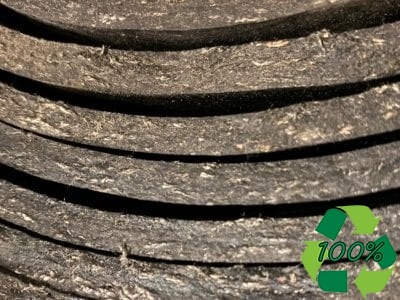

METROSCRAPE™ is manufactured using recycled high quality tyres resulting in an economical and environmentally friendly product. The fully vulcanised rubber has inclusion of majorly dispersed fibres creating a unique compound that exhibits outstanding strength and durability. METROSCRAPE™ can withstand harsh conditions like exposure to ozone and low temperatures. It’s available in flat sheets for die cut parts/slit to bespoke widths or can be moulded to create bespoke parts.
METROSCRAPE™ is an excellent economical choice for applications where superior tear resistance and durability are required. Applications include but are not limited to trucking, baffles/close-outs, air dams, splash shields, mud guards and mud flaps. Agricultural used for scrapers, step pads, cab mats, engine close outs and grain deflectors. Many mining, railroad and anti-vibration applications.
|METROSCRAPE™ MULTIPLY FABRIC REINFORCED RUBBER|
|FPS UNITS||METRIC UNITS|
|DENSITY||ASTM D297||G/CM3||1.25 G/CM3|
|HARDNESS||ASTM D2240||A SCALE||80 SH A|
|TENSILE STRENGTH WITH GRAIN||ASTM D412||MPA||5|
|ULTIMATE ELONGATION ACROSS GRAIN||ASTM D412||%||0.45|
|ABRASION RESISTANCE ( MAX )||ASTM D5963||MM3||110MM3|
|TEAR STRENGTH ACROSS GRAIN||ASTM D624||KN/M||52|
|TEMPERATURE RANGE||CELSIUS||-40 TO + 75º C|
|LOW TEMPERATURE BRITTLENESS@ -40C||ASTM D2137-11||NON BRITTLE IN BOTH DIRECTIONS UNDER 7 X MAGNIFICATION|
|FLAMMABILITY – MAXIMUM BURN RATE 100MM/MM||FMVSS 302||MM/MM||100 MAX|
