Skirtboard Rubber Sheets

Skirtboard rubber sheets are vital to improving the performance of the conveyor belt, improving tracking, reducing the belt’s slippage and extending the life of the belt, bearings and other components.

With good resistance to abrasion, cuts and wear and tear, they are designed to resist heavy impacts in loading areas.

Providing good weather resistance, they are resistant to chemicals and have excellent elongation properties.

Skirtboard rubber sheets are suitable for various applications, including sealing strips, mounting pads, flapping and snowplough blades. It is suitable for general industrial and construction use where abrasion resistance is required.

Code Specific Gravity Hardness (±5) Tensile Strength Elongation Abrasion Colour Temperature Range
Gm/Cm3 Shore A Kg/Cm2 % Mm3 oC
Standard ASTM D297 ASTM D2240 ASTM D412 ASTM D412 ASTM D5963
UKRB1320 Red Soft 1.2 ± 0.05 45 100 400 150 Red -25o to +70oC
UKRB153 1.35 ± 0.05 55 60 300 200 Black -25o to +70oC
UKRB1457 High Temperature 1.16 ± 0.05 60 60 300 250 Black -30o to +180oC
UKRB187 Flame Retardant to ISO 340 and Anti-Static to BS 490 1.2 ± 0.05 60 80 250 250 Black -30o to +100oC

Sizes


We are able to supply all standard sizes but are also able to manufacture to order/length.



Dimensions
100mm x 10mm x 20m long150mm x 15mm x 20m long
150mm x 10mm x 20m long200mm x 15mm x 20m long
200mm x 10mm x 20m long250mm x 15mm x 20m long
250mm x 10mm x 20m long
300mm x 10mm x 20m long

SURESEAL SKIRT RUBBER

Consisting of a Neoprene rubber mixture with a medium resistance to oil products they are used in a temperature range between -35 to +100°C.

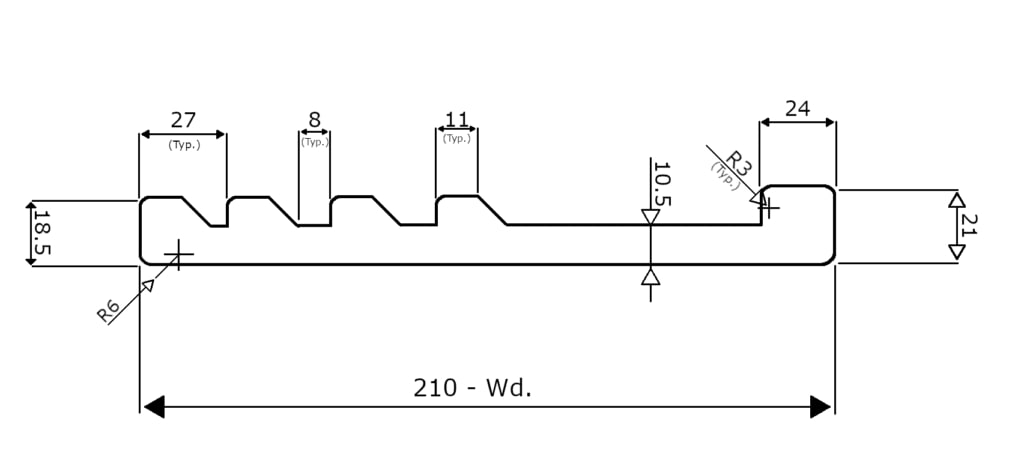

Skirting Diagram

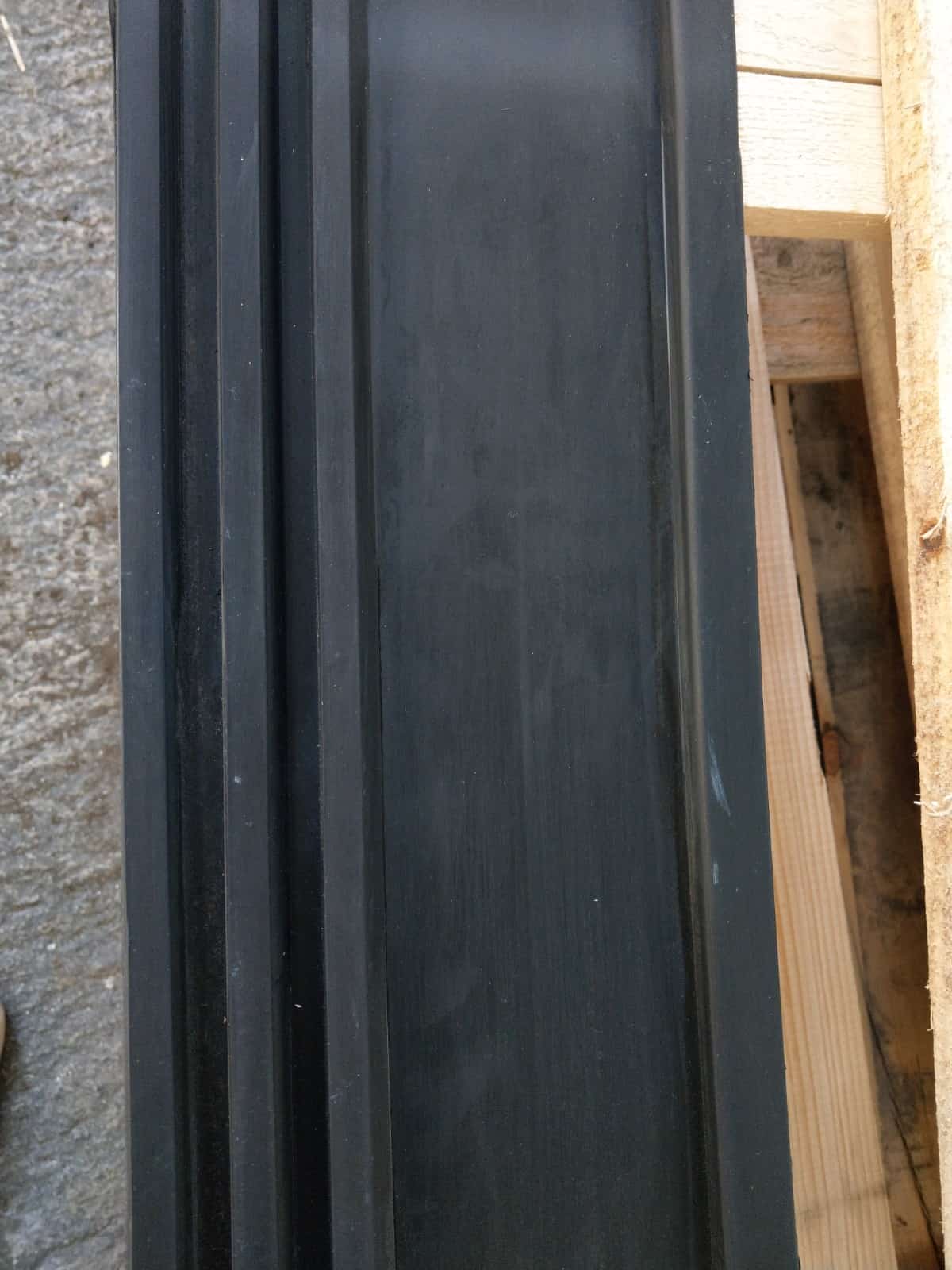

Skirting Rubber

SURESEAL SMALL SKIRT RUBBER

Sureseal Small Skirt Rubber

SURESEAL LARGE SKIRT RUBBER

Sureseal Large Skirt Rubber
