UKRB-FLEX - TYPE TW (TEXTILE WEFT)

TW impact resistant belts have a combined metallic/textile mesh and can be used in a temperature range of -25ºC… max. 150ºC. Special steel cords are used to give an adequate behaviour at compression, a favourable elongation and a good tearing resistance. These belts have a wide spectrum of applications.

BELT WIDTHS AND EDGES

The widths are between 500-1600mm with moulded edges.

TypeTW
350
TW
500
TW
630
TW
800
TW
1000
TW
1250
TW
1400
TW
1600
Transversal tensile strength , N/mm5050505050505050
Mass, Kg/m21.502.152.653.604.455.606.307.15
Thickness, mm3.203.203.204.104.104.94.94.9
Longitudinal tensile strength, N/mm3505006308001000125014001600
Warp cords4x7x0.25 E4x7x0.35 E4X(0.50+6X0.44) E
Diameter, mm2.02.02.02.852.853.903.903.90
Cord breaking strength
– average, N
– minimum, N
3250
3075
3250
3075
3250
3075
5900
5600
5900
5600
10100
9600
10100
9600
10100
9600
Elongation at break ,%55555555
Density lin., g/m11.411.411.422.922.937.937.937.9
-%Cu
-%Zn
63.5
36.5
63.5
36.5
63.5
36.5
63.5
36.5
63.5
36.5
67.5
32.5
67.5
32.5
67.5
32.5
Pitch, mm8.335.814.636.675.387.046.255.50
Cord density/m120172216150186142160182
Weft cordsNylon 1400×8 RFI
Diameter mm1.21.21.21.21.21.21.21.2
Cord breaking strength (N)800800800800800800800800
Density lin., g/m1.251.251.251.251.251.251.251.25
Elongation at break,%1515151515151515
Pitch, mm1515151515151515
Cord density/m6666666666666666

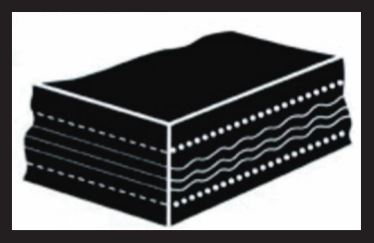

Type-TW

TYPE OF BELTS

K – Conveyor belts with flame resistant and antistatic covers.
S – Flame resistant conveyor belts (both carcass and covers).
ST2 – Heat resistant conveyor belts (120ºC, max. 130ºC) .
ST3 – Heat resistant conveyor belts (max.150ºC).
W, X and Y – Conveyor belts for general use.

Physical-mechanical characteristics DIN 22102/1 UKRB STANDARD
W X Y K1 K2 S1 S2 ST2 ST3
Tensile strength, kgf/cm2, min. 180 250 200 200 150 200 150 150 80
Elongation at break, %, min. 400 450 400 400 350 400 350 450 350
Abrasion, mm3, max 90 120 150 200 200 200 200 200 200
